Cree CPY 250 Description
Slim, low profile, easy mounting from below the deck. Luminaire housing constructed of rugged cast aluminum with integral heat sink specifically designed for LED. Luminaire mounts directly to the canopy deck in a 51mm to 102mm round hole and is secured in place with self-sealing screws that provide water-tight seal. Suitable for use in single or double skin canopies with a minimum 102mm wide panels and a minimum 0.7mm canopy thickness. Direct imaging of LEDs is eliminated with high efficiency patterned flat or 23mm drop glass lens.
Product Specifications
| Power Rating | 81W / 126W |
| Lumen Output | 8,821lm / 13,363lm |
| Lifespan | 150,000hrs / 100,000hrs |
| CCT | 5700K / 4000K |
| IP Rating | IP66 |
| CRI | >70 |
| Power Factor | > 0.98 at full load |
| Input Voltage | 120–277V, 50/60Hz, Class 1 drivers |
| Total Harmonic Distortion | < 20% at full load |
| Surge suppression protection | Integral 6kV |
| Warranty | 5 Years |
Downloads
| Flat Lens Option Specification | |
| IES Files |

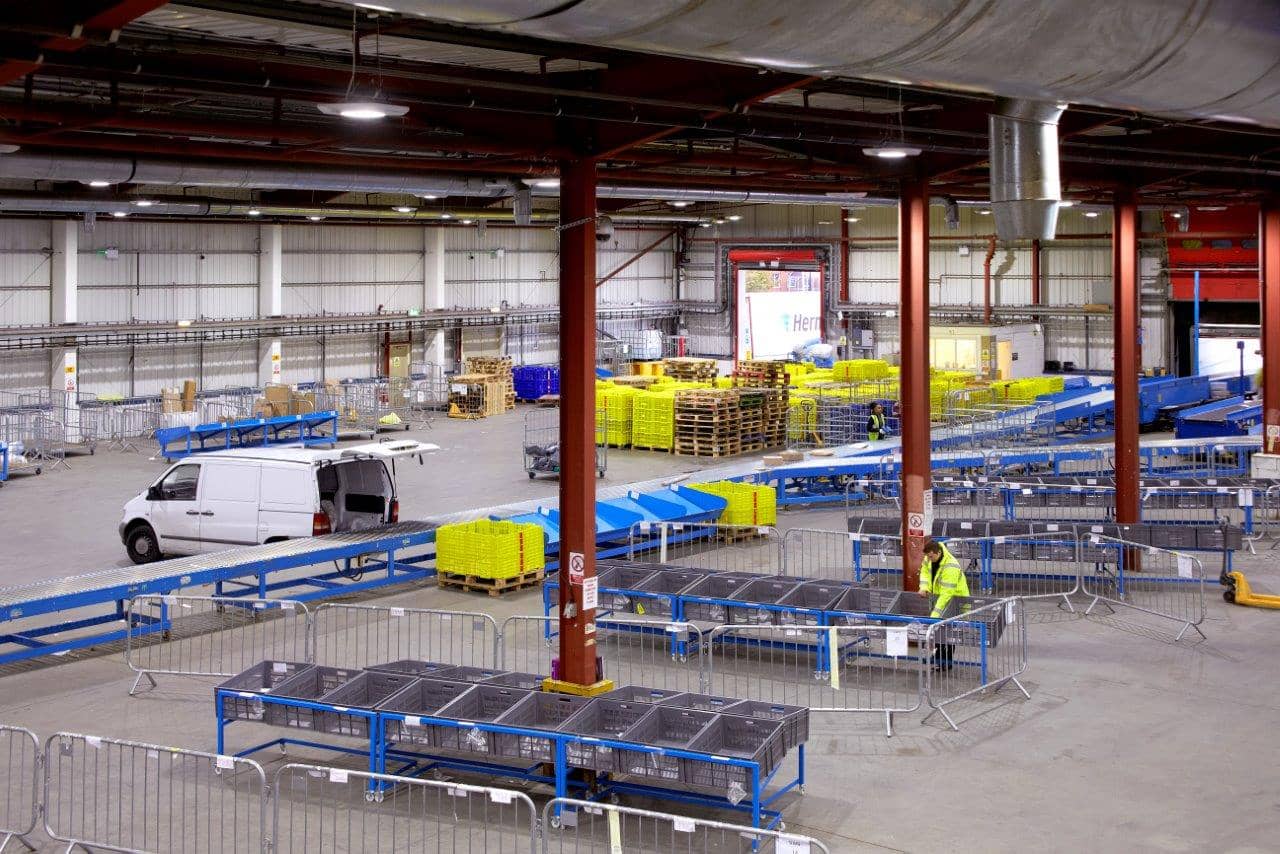

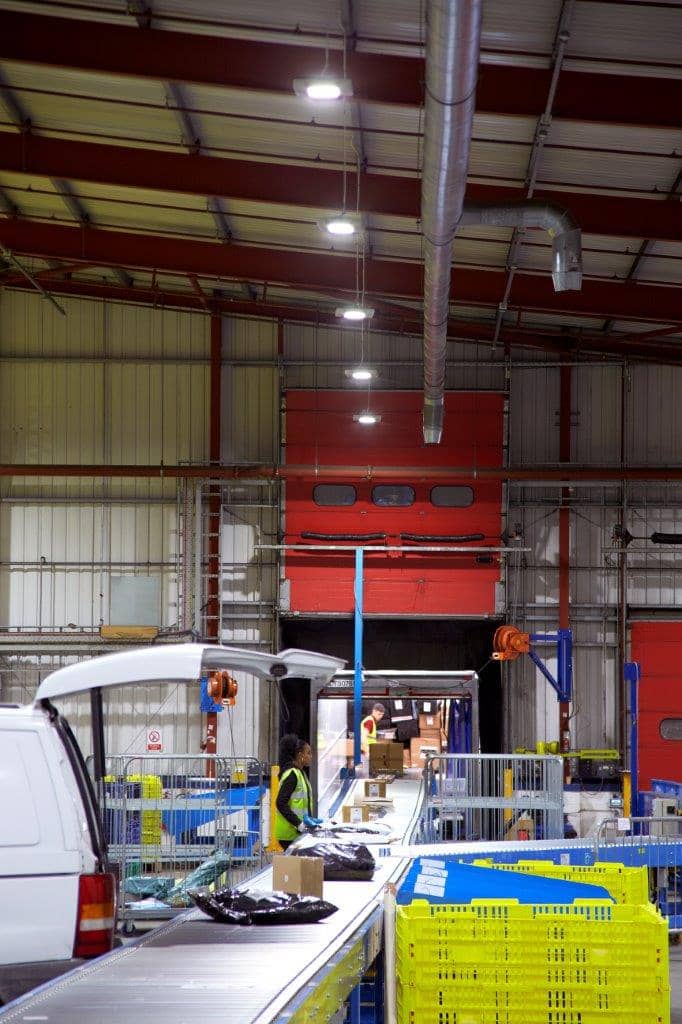

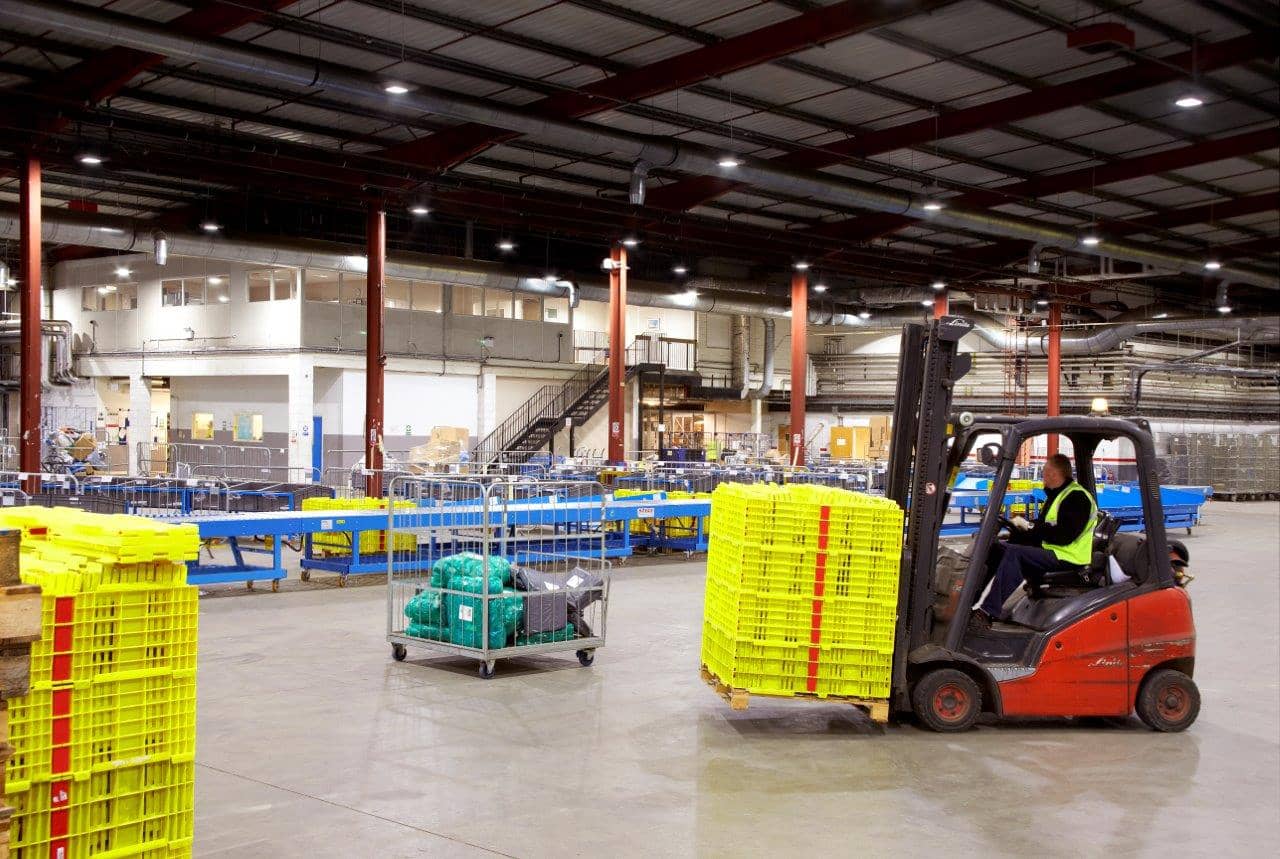

Installs using this light
