Cree OSQ Series

Cree OSQ Series Description

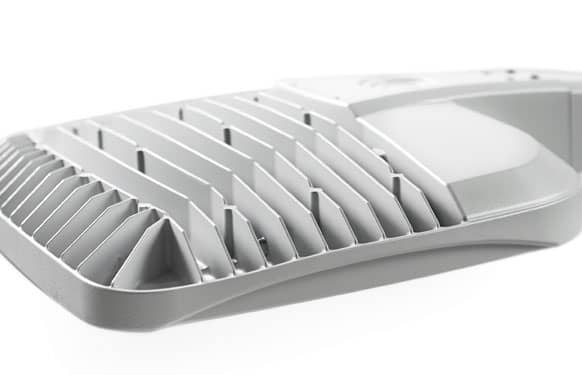

The OSQ™ Area luminaire blends extreme optical control, advanced thermal management and modern, clean aesthetics. Built to last, the housing is rugged cast aluminum with an integral, weathertight LED driver compartment. Versatile mounting configurations offer simple installation. Its slim, low-profile design minimizes wind load requirements and blends seamlessly into the site providing even, quality illumination. ‘S’ Input power designator is a suitable upgrade for HID applications up to 400 Watts Applications: Parking lots, walkways, campuses, auto dealerships, office complexes, and internal roadways.

Product Specifications

Power Rating 56W to 223W
Lumen Output 5,140lm/21,294lm
Lifespan 150,000hrs
CCT 4000K/5700K
IP Rating IP66
CRI >70
Power Factor >0.9 at full load
Input Voltage 120-277V/220-240V or 50/60Hz
Total Harmonic Distortion <20% at full load
Surge Suppression Protection Integral 10kV
Weight 12kg
Warranty 10 Years
